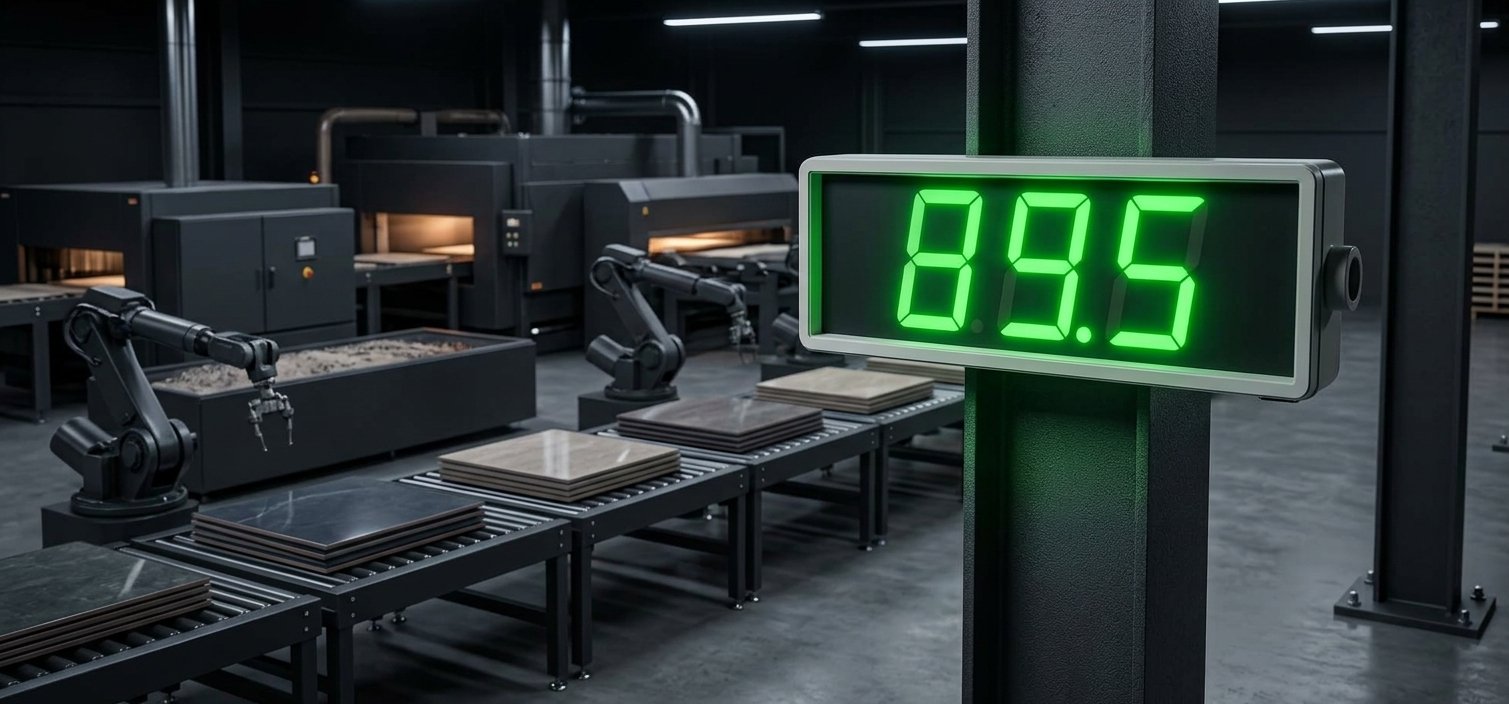

The ITM-181 is a smart part-temperature acquisition system for conveying lines. Temperature is measured with a fast-response infrared sensor, so no contact with the measured part is required.
The system includes a photocell to detect the presence of a part on the conveyor. This way, the value shown on the display is always the real temperature of the last measured part, avoiding anomalous temperature readings between parts (floor temperature, belts, etc.).
The unit has configurable alarm margins (upper and lower limits). When the measured temperature falls outside the configured margins, the display turns red to indicate the alarm condition, while simultaneously energising a relay output that can be used to signal the alarm to external devices.
As an option, the unit can include a 4-20 mA analogue output and several communication options (MODBUS over RS485, MODBUS TCP over Ethernet) to allow external monitoring of the part temperature.
The display has an optional module that logs temperature values so they can later be retrieved from an Android smartphone over Bluetooth. Logging capacity is practically unlimited, allowing years of logging with no need to delete the historical data.
- Measurement
- Fast-response contactless infrared sensor
- Detection
- Part-presence photocell
- Alarms
- Configurable margins, red display and relay output
- Options
- 4-20 mA analogue output, MODBUS RS485 and MODBUS TCP
- Logging
- Bluetooth to Android smartphone, practically unlimited capacity
